Shell mill holder, DIN 69871 AD/B, PRAMET, 69871.50ADB-FMH1.60.070

Product specification

Code:	297930824
Category:	Clamping tools » 1 » Upínače PRAMET » Frézovací trny » For mounting milling cutters with transverse groove. » DIN 69871

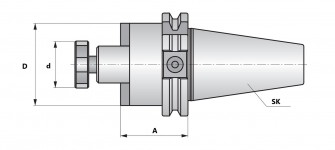

d	60 mm
A	70 mm
D	129 mm
l1	40 mm
Note DIN 69871 AD/B SK 50 For large diameter face mill cutters with four additional threaded holes according to DIN 2079.
